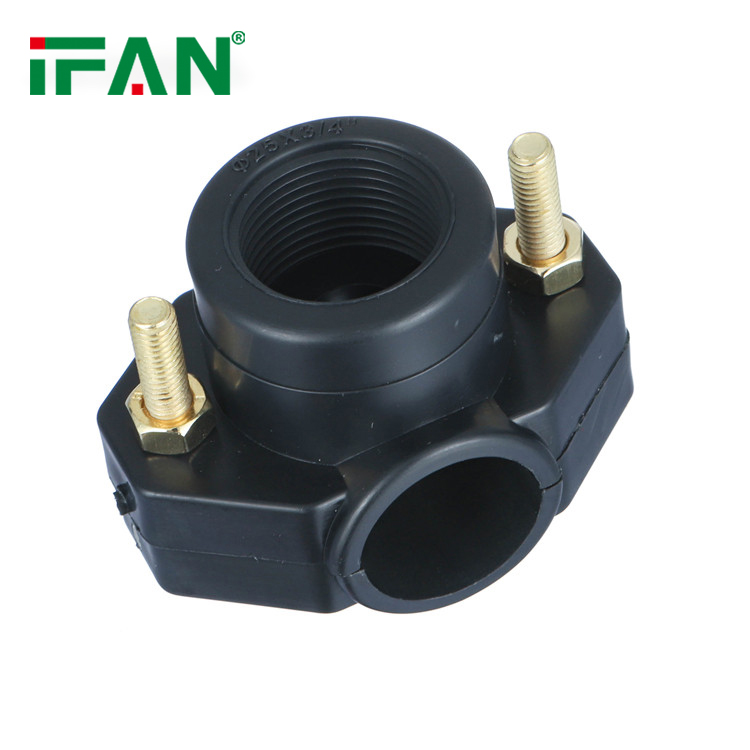

A saddle clamp, also known as a pipe saddle, is a type of plumbing or piping component used to connect a branch line to a main pipe. It consists of a U-shaped clamp that fits around the main pipe and a flat plate or saddle that rests on the main pipe and provides a point of attachment for the branch line. The branch line can be secured to the saddle using bolts or screws. Saddle clamps are commonly used in irrigation and water supply
features of saddle clamp
- U-shaped clamp: This fits around the main pipe and provides support for the saddle.
- Saddle or plate: This rests on the main pipe and provides a point of attachment for the branch line.
- Bolt holes: These are located on the saddle or plate and allow for the secure attachment of the branch line to the saddle.
- Materials: Saddle clamps can be made from different materials such as metal, plastic, or rubber, depending on the application and the type of pipe being used.
- Size range: Saddle clamps come in a variety of sizes to accommodate different pipe diameters and branch line sizes.
- Easy installation: Saddle clamps are easy to install and do not require welding, making them a popular choice for attaching branch lines to existing pipes.
wide applications of saddle clamp
- Plumbing: Saddle clamps are commonly used in plumbing to attach branch lines to existing pipes.
- Irrigation: Saddle clamps can be used to connect sprinkler heads to irrigation pipes.
- Agriculture: Saddle clamps are used in agricultural irrigation systems to connect polyethylene pipes.
- Water treatment: Saddle clamps are used in water treatment plants to connect pipes and valves.
