Introduction

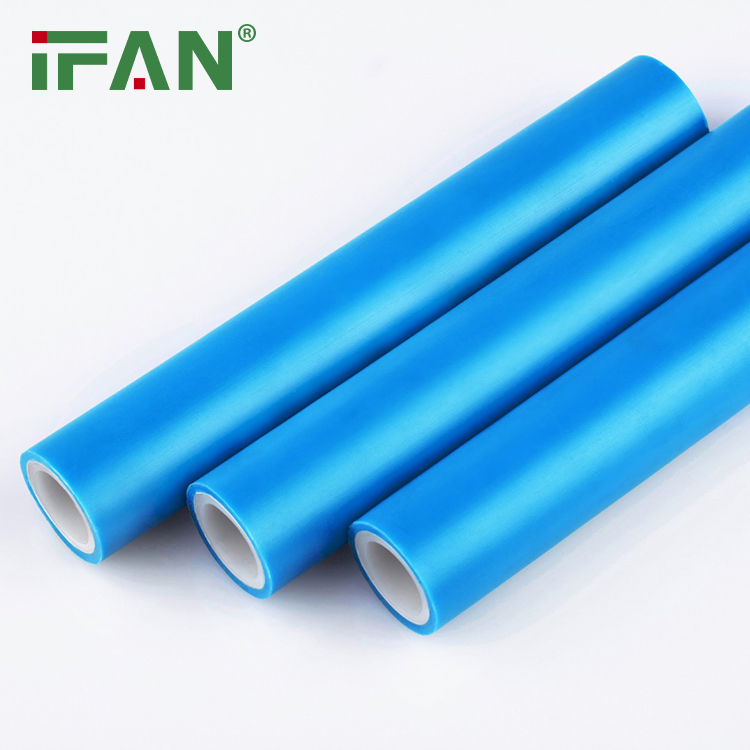

Proper installation is crucial for the optimal performance and longevity of PPR-AL-PPR pipes in plumbing systems. In this article, we will provide a step-by-step guide for professionals on how to install PPR-AL-PPR pipes effectively. Let’s break down each section into separate headings.
1. Pre-Installation Preparation
Before starting the installation process, it is important to gather all the necessary tools and materials. This typically includes PPR-AL-PPR pipes, fusion welding machine or mechanical fittings, pipe cutters, a deburring tool, a chamfering tool, and a measuring tape. Ensure that the work area is clean and free from any obstructions.
2. Pipe Cutting and Preparation
Measure and mark the required length of the PPR-AL-PPR pipe using a measuring tape. Use a pipe cutter to make a clean and straight cut at the marked location. After cutting, use a deburring tool to remove any burrs or rough edges from the pipe. Use a chamfering tool to chamfer the pipe end, allowing for easier insertion into fittings.
3. Joint Preparation and Fusion Welding
For fusion welding joints, ensure that the fusion welding machine is set to the appropriate temperature according to the manufacturer’s instructions. Clean the inside of the fitting and the outside of the pipe end using a clean cloth or brush. Insert the pipe into the fitting until it reaches the stop mark. Use the fusion welding machine to heat the fitting and pipe simultaneously. Once the proper fusion time has elapsed, remove the pipe from the fitting and hold it in place until the joint cools and solidifies.
4. Joint Preparation and Mechanical Fittings
For mechanical fittings, ensure that the fitting and pipe are clean and free from any debris. Apply a thin layer of lubricant or PTFE tape on the threads of the fitting. Insert the pipe into the fitting and tighten the connection using a wrench or pliers. Be cautious not to overtighten, as it may damage the fitting or pipe.
5. Alignment and Support
Ensure that the PPR-AL-PPR pipes are properly aligned and supported throughout the installation process. Use hangers, clips, or clamps to secure the pipes at appropriate intervals, as specified by plumbing codes and standards. Proper alignment and support prevent stress on the pipes and minimize the risk of leaks or failures.
6. Pressure Testing and Inspection
Once the installation is complete, conduct a pressure test to ensure the integrity of the system. Close all valves and apply water or air pressure to the system, gradually increasing it to the specified test pressure. Inspect all joints and connections for leaks. If any leaks are found, address them immediately by adjusting or replacing the affected components.
Conclusion
Proper installation of PPR-AL-PPR pipes is essential for their optimal performance in plumbing systems. By following this step-by-step guide, professionals can ensure a successful installation process. Preparing the pipes, joints, and fittings, using the correct installation methods (fusion welding or mechanical fittings), ensuring proper alignment and support, and conducting pressure testing and inspection are all crucial steps in achieving a reliable and leak-free plumbing system. With proper installation techniques, PPR-AL-PPR pipes can provide long-lasting and efficient performance for various plumbing applications.
