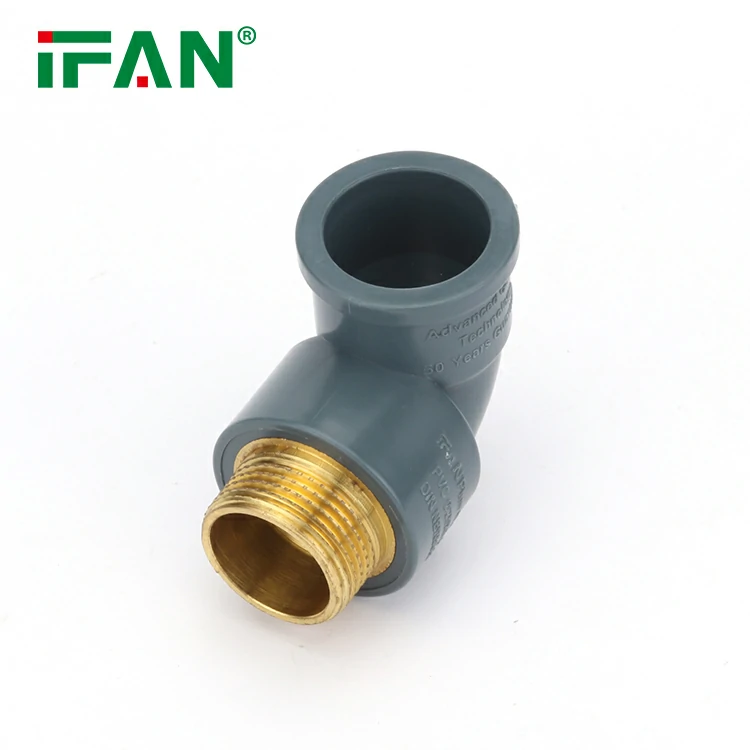

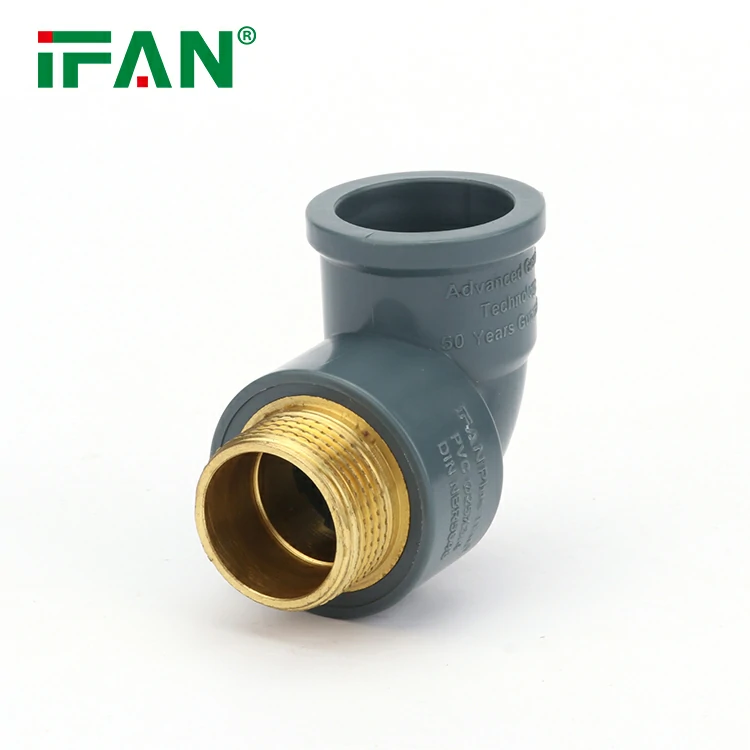

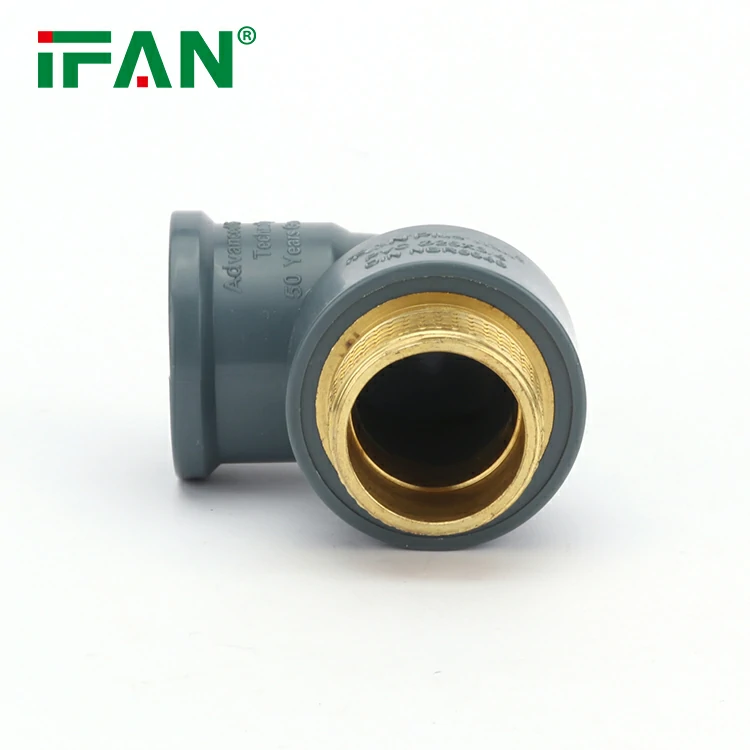

UPVC Fitting Male Elbow: The Efficient Connector for Modern Plumbing Networks
In the dynamic world of plumbing, the UPVC Fitting Male Elbow stands as a pivotal component, providing seamless connectivity and superior performance. This article delves into the unique features, benefits, and applications of the UPVC Fitting Male Elbow, highlighting its value in modern plumbing networks.
I. Introduction to the UPVC Fitting Male Elbow
The UPVC Fitting Male Elbow, as an essential element in plumbing systems, offers a 90-degree connection between UPVC pipes. Its male threaded design ensures a secure and leak-proof joint, critical for maintaining the integrity and efficiency of the entire plumbing network.
II. Material Properties and Durability
UPVC, or Unplasticized Polyvinyl Chloride, is the material of choice for the Male Elbow. This thermoplastic material boasts exceptional durability and corrosion resistance, surpassing traditional metal fittings. Its resilience to rust, chemicals, and environmental degradation ensures long-term reliability and performance.
Our Factory
The factory building area is 120 thousand square meters square,with 30 years of factory management experience. There are 610 employees and more than 50 backbone teams.
Click here to learn about our factory information!
III. Key Features and Benefits
- Corrosion Resistance: The UPVC Fitting Male Elbow is impervious to most chemicals, acids, and bases. This corrosion resistance ensures the fitting maintains its integrity and functionality, even in harsh environments.
- Easy Installation: The male threaded design of the UPVC Fitting Male Elbow simplifies installation. It eliminates the need for special tools or adhesives, reducing installation time and labor costs.
- Smooth Interior Walls: The smooth interior walls of the fitting minimize fluid friction and turbulence, optimizing fluid flow and reducing pressure loss. This results in improved system efficiency and reduced energy consumption.
- Versatility: The UPVC Fitting Male Elbow is suitable for a wide range of applications, including potable water systems, drainage systems, and industrial piping. Its corrosion resistance and chemical stability make it a versatile choice for various environments.
- Cost-Effectiveness: The UPVC Fitting Male Elbow offers a cost-effective solution compared to traditional metal fittings. Its durability and ease of installation translate into lower maintenance costs and longer lifespans.
IV. Technical Specifications
- Material: UPVC (Unplasticized Polyvinyl Chloride)
- Connection Type: Male Threaded
- Angle: 90 Degrees
- Wall Thickness: 2.0-36.8mm (varying according to size and application)
- Certifications: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API, ISO (depending on manufacturer and application)
Technical Specifications
- Material: Unplasticized Polyvinyl Chloride (UPVC)
- Connection Type: Male Threaded
- Angle: 90 Degrees
- Wall Thickness: Available in various thicknesses ranging from 2.0mm to 36.8mm, depending on the size and application.
- Certifications: Compliant with ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API, and ISO standards, ensuring quality and reliability.
V. Applications
The UPVC Fitting Male Elbow finds applications in various plumbing networks, including:
- Potable Water Systems: Its corrosion resistance and smooth interior walls ensure safe and efficient water flow in drinking water systems.
- Drainage Systems: The Male Elbow’s durability and easy installation make it a suitable choice for drainage systems, handling wastewater and sewage effectively.
- Industrial Piping: In industrial environments, the UPVC Fitting Male Elbow withstands harsh chemicals and temperatures, ensuring reliable fluid transfer in process piping systems.
Installation Method
The installation of the UPVC Fitting Male Elbow is a straightforward process that requires minimal tools and expertise. Below are the key steps:
- Preparation: Ensure that the pipe ends to be connected are clean, dry, and free of debris. Measure and mark the desired installation position.
- Application of Lubricant: Apply a suitable lubricant to the male threads of the fitting and the female threads of the pipe. This will ensure smooth insertion and prevent damage to the threads.
- Insertion: Align the male threads of the fitting with the female threads of the pipe. Rotate the fitting slowly and evenly until it is fully inserted and tightened. Avoid over-tightening, which can damage the threads.
- Verification: Once the fitting is installed, visually inspect the connection for any leaks or irregularities. If necessary, use a pressure tester to ensure the integrity of the connection.
VI. Conclusion
The UPVC Fitting Male Elbow is a superior choice for modern plumbing networks. Its corrosion resistance, easy installation, smooth interior walls, versatility, and cost-effectiveness make it a reliable and efficient connector. Whether in potable water systems, drainage systems, or industrial piping, the UPVC Fitting Male Elbow ensures seamless connectivity and superior performance.
